Features: This product is water-soluble, so you can wash the halftone, tools and equipment directly with water. It is characterized by the following properties: wide sintering temperature, strong adhesion after sintering, great surface finish, good color saturation, strong hiding power and excellent acid and alkali resistance.

Color: Black

The lead and cadmium free series meets the RoHS2.0, REACH and Halogen requirements.

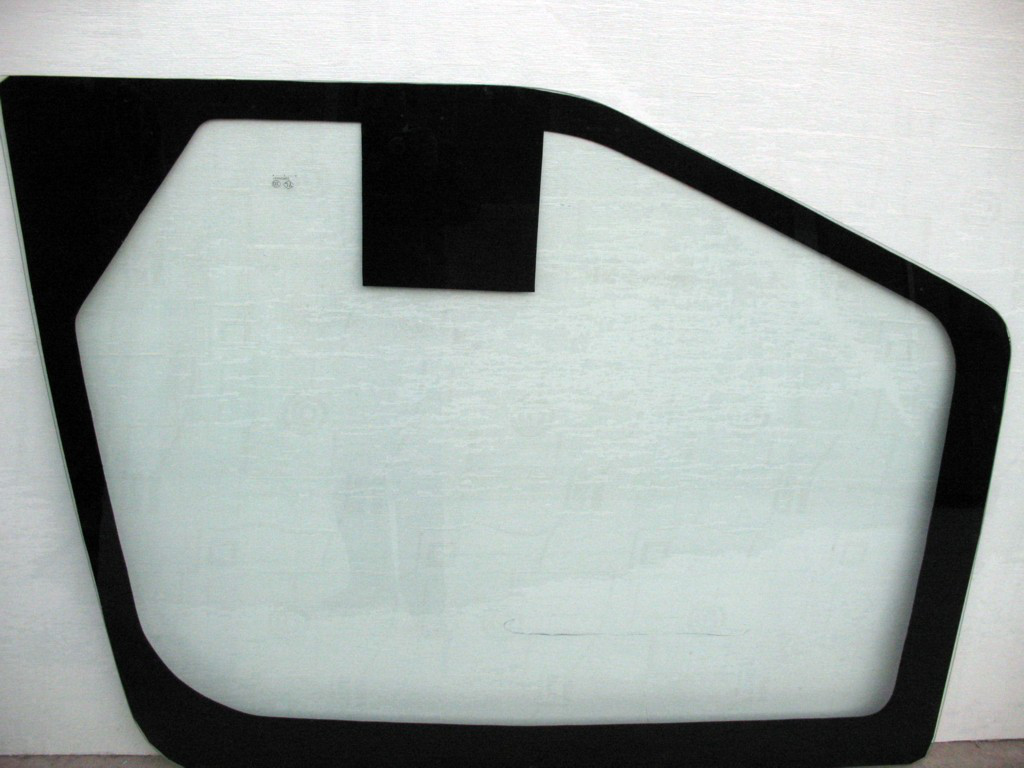

Scope of application: Automotive windshield laminated glass (surface 2 and surface 4)

Solid content: 75±3%

Fineness: ≤13μm

Viscosity: 400±100dPa.s/25±3℃ (RION viscometer VT-04F)

Screen printing conditions: 180-350 mesh

Expansion coefficient: 6.5-9.5×10ˉ⁷/℃

Drying conditions: 150-180℃/3-5 min

Sintering temperature: 580-630℃/10-15 min

Note: Related to the heating rate and holding time.

Sintering atmosphere: Neutral or weak oxidizing atmosphere.

Acid resistance: 24h@0.1N H2SO4/80℃

Alkali resistance: 2-1 grade
